Start with the aft outriggers... it may be necessary to drop the nose jack slightly to allow room for the aft jacks to rotate down to lock...

The Prospector™ Mule

Portable Solar/Weather Station



Web design by WeckTech

Installation and Set-up

Step 1: Orient Trailer on Site

e-mail: TMLeonard@TapTheSun.com

Voice: (505)-281-0399   Fax: (505)281-4248
Map to PST Facility
Precision Solar Technologies Corp
10 Camino del Senador
Tijeras, New Mexico  87059-7631
U.S.A.

Step 1a: Deploy Outriggers

Step 1 2 3 4 5 6 7 8 9 10 11
Next

Step 1b: Pre-Level Trailer

Due South

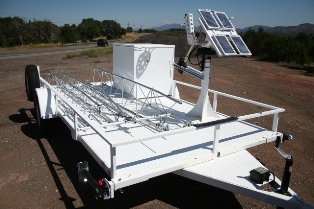

Drop trailer with tongue pointing DUE South...

Move truck away from front of trailer...

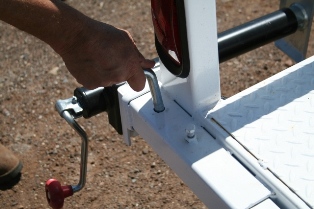

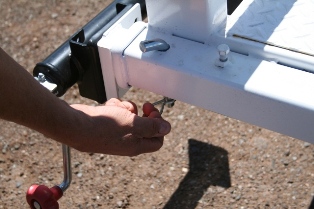

Pull the outrigger lock pins and loosen the set-bolt...

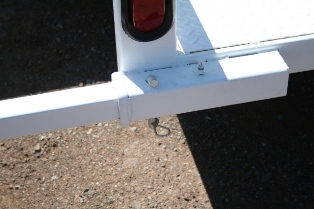

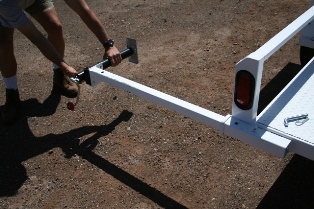

Slide outrigger out either to hard stop or until lock-pin holes align...

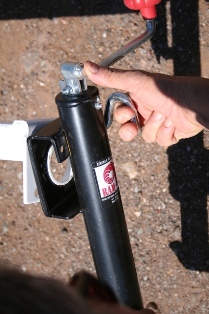

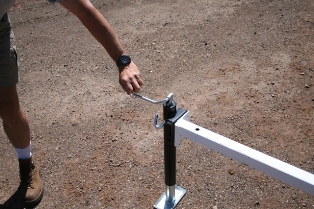

Pull the jack locking pins and rotate jack downward until the spring lock engages...

Replace lock pins or tighten set-bolts ...

Starting with the aft end, use either a bubble level or small stright level to level the tower mount laterally (side-to-side)...



If using a round bubble level for this aft adjustment, it only needs to be centered from side-to-side...

Deploy all four outriggers at least a foot ...

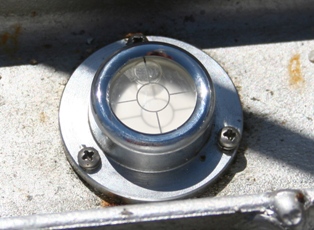

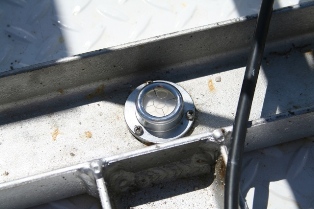

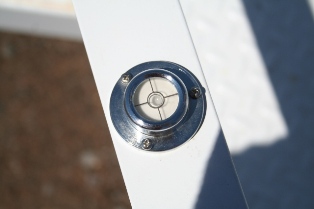

Moving to the forward outriggers, refer to the bubble level mounted on the front rail to adjust the forward jacks until the bubble is centered...
